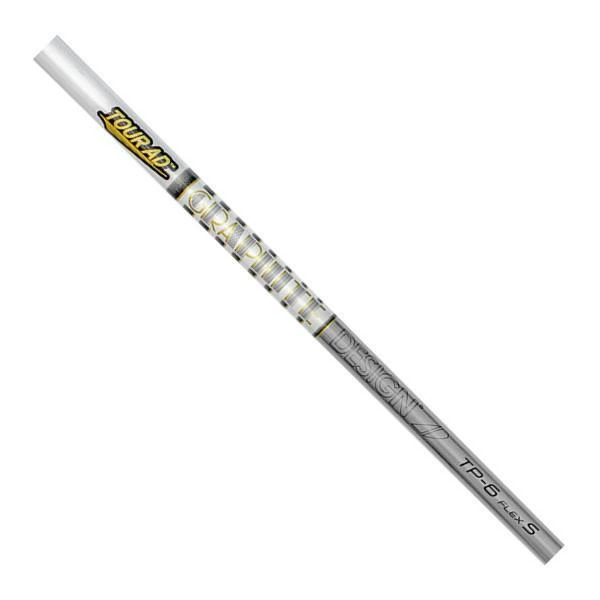

Graphite Design Tour AD TP Wood Shaft
Original price was: $380.00.$98.99Current price is: $98.99.
- Safe Payments for a Better Shopping Experience
- Quality and Affordability Combined
- Free Shipping over $25
- Discover a world of quality products.
| Â IMPORTANT: This is a new/uncut driver & fairway wood shaft. If you are looking for a shaft that is assembled with a driver adapter tip + grip, then visit:Â Â
(ASSEMBLED) Graphite Design Tour AD TP Wood Shaft with Adapter Tip (Callaway / Cobra / Ping / Mizuno / TaylorMade / Titleist) + Grip |
Â
WHAT YOU NEED TO KNOW
- Performance wood shaft made in Japan
- Launch trajectory range: High to Mid-high
- Spin range: Mid to Low
- Medium-Firm mid section with firm tip
- Speed recommendation: 71-105+ mph
SHAFT COMPARISON
- Download:Â Tour AD wood shaft bend profile comparison
FULL DESCRIPTION
Designed around new tooling, the Tour AD TP uses a brand new technology called FFT for Fast Taper Technology. This new technology incorporates a faster taper rate from the lower mid-section to the tip of the shaft than previous Tour AD wood shaft models. The new Fast Taper Technology provides the overall feeling of greater club head control at impact and an increase in club head speed through the swing.
                                                               Â
The Tour AD TP shaft has a medium stiffness starting at the handle thru the mid-section of the shaft and a stiff tip profile to promote a mid/high launch condition and low spin. The Tour AD TP also utilizes TORAYCA T1100G carbon-fiber pre-preg with NANOALLOY ® technology in the tip section of the shaft for additional shaft stability, exceptional feel and precise ball control.
TECHNOLOGY & FEATURES
- Toray Composites Nanoalloy material for stability
- 50 ton ultra premium carbon fiber
BEND PROFILE
| Models | TIP Section | MID Section | BUTT Section |
|---|---|---|---|
| TP-5 to TP-8 | Stiff | Firm | Firm |
| TP-4 | Soft | Soft | Medium |
 Â
PERFORMANCE
- Designed to promote Mid to Mid/High launch angles with Low  ball spin rates.
Â
FITTING
| 71-85 MPH | 86-95 MPH | 92-98 MPH | 96-105 MPH | 105+ MPH |
|---|---|---|---|---|
| R2 Flex (Lite/ Senior) | R1Â Flex (Regular) | SR Flex (Stiff Regular) | S Flex (Stiff) | X Flex (X-Stiff) |
SPECIFICATIONS
| Shaft Type | Flex | Length | Wt. | Tip OD | Tip Para. | Butt OD | Torque | Kick pt | Launch | Spin |
|---|---|---|---|---|---|---|---|---|---|---|
| TOUR AD TP 4 R2 | Lite/ Senior | 46″ | 46.0g | .335″ | 3.0″ | .594″ | 5.7 | MID | HIGH | MID |
| TOUR AD TP 4 R1 | Regular | 46″ | 47.0g | .335″ | 3.0″ | .594″ | 5.7 | MID | HIGH | MID |
| TOUR AD TP 4 S | Stiff | 46″ | 48.0g | .335″ | 3.0″ | .596″ | 5.7 | MID | HIGH | MID |
| TOUR AD TP 5 R2 | Lite/ Senior | 46″ | 54.0g | .335″ | 3.0″ | .596″ | 4.4 | MID | MID/HIGH | LOW/MID |
| TOUR AD TP 5 R1 | Regular | 46″ | 56.0g | .335″ | 3.0″ | .598″ | 4.4 | MID | MID/HIGH | LOW/MID |
| TOUR AD TP 5 S | Stiff | 46″ | 57.0g | .335″ | 3.0″ | .600″ | 4.4 | MID | MID/HIGH | LOW |
| TOUR AD TP 6 SR | Stiff Regular | 46″ | 64.0g | .335″ | 3.0″ | .596″ | 3.2 | MID | MID/HIGH | LOW |
| TOUR AD TP 6 S | Stiff | 46″ | 65.0g | .335″ | 3.0″ | .598″ | 3.2 | MID | MID/HIGH | LOW |
| TOUR AD TP 6 X | X-Stiff | 46″ | 67.0g | .335″ | 3.0″ | .600″ | 3.2 | MID | MID/HIGH | LOW |
| TOUR AD TP 7 S | Stiff | 46″ | 73.0g | .335″ | 3.0″ | .600″ | 3.0 | MID | MID/HIGH | LOW |
| TOUR AD TP 7 X | X-Stiff | 46″ | 75.0g | .335″ | 3.0″ | .602″ | 3.0 | MID | MID/HIGH | LOW |
| TOUR AD TP 8 S | Stiff | 46″ | 85.0g | .335″ | 3.0″ | .600″ | 2.6 | MID | MID/HIGH | LOW |
| TOUR AD TP 8 X | X-Stiff | 46″ | 87.0g | .335″ | 3.0″ | .602″ | 2.6 | MID | MID/HIGH | LO |
| Option | TP 4 / A-flex (R2), TP 5 / A-flex (R2), TP 4 / R-flex (R1), TP 5 / R-flex (R1), TP 6 / Stiff/Reg-flex (SR), TP 4 / Stiff, TP 5 / Stiff, TP 6 / Stiff, TP 6 / TX-flex, TP 7 / Stiff, TP 7 / TX-flex, TP 8 / Stiff, TP 6 / X-Stiff, TP 7 / X-Stiff, TP 8 / X-Stiff |
|---|
