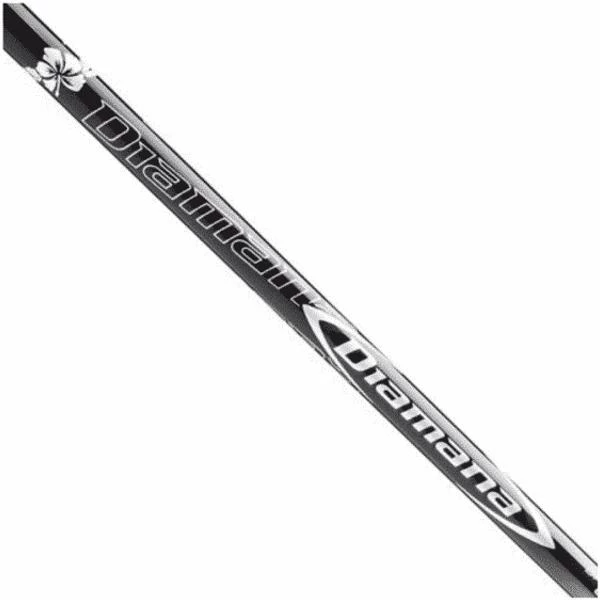

Mitsubishi DIAMANA D+PLUS Limited Wood Shaft

• Performance wood shaft
• Launch trajectory: Low
• Spin range: Low
• Speed recommendation: 91-260 mph


SPECIFICATIONS

Shaft Name	Flex	Length (in)	Weight (g)	Tip O.D. (in)	Tip Length (in)	Butt O.D. (in)	Torque (degrees)	Kick Pt.
Diamana™ D+PLUS Limited Edition 60	S	46.0	61	0.335	3.0	0.602	3.5	MID/HIGH
Diamana™ D+PLUS Limited Edition 60	TX	46.0	66	0.335	3.0	0.610	3.1	MID/HIGH
Diamana™ D+PLUS Limited Edition 70	S	46.0	70	0.335	3.0	0.602	3.2	HIGH
Diamana™ D+PLUS Limited Edition 70	TX	46.0	76	0.335	3.0	0.608	2.7	HIGH
Diamana™ D+PLUS Limited Edition 80	TX	46.0	87	0.335	3.0	0.614	2.6	HIGH
Diamana™ D+PLUS Limited Edition 90	TX	46.0	93	0.335	3.0	0.602	2.5	HIGH

FITTING

Driver Speed (mph)/Driver Carry (yds)	>80/>210	81-87/210-230	88-92/231-240	93-105/241-259	106/260
Diamana™ D Limited 50		R	SR	S	X/TX
Diamana™ D Limited 60		R	SR	S	X/TX
Diamana™ D Limited 70				S	X/TX
Diamana™ D Limited 80				S	X/TX

TIP TRIMMMING

Driver	3 Wood	5 Wood	7 Wood	9 Wood
0″	0.5″	0.75″	1.0″	1.0″

FULL DESCRIPTION

The next generation Diamana™ D+PLUS™ Limited Edition incorporates Mitsubishi Chemical’s own DIALEAD^® Pitch Fiber into the butt-section of this new design to deliver maximum stability and increase energy transfer in our time tested and tour proven “low launch” White Board profile.

We have taken the original design with Multi-Dimensional Interlay (M.D.I.) and Tough-QURE™ Resin System technology, and incorporated DIALEAD^® Pitch Fiber in the butt-section. The result?  A heavier weighted profile with maximum stability in the tip and butt-section to deliver a lower launching, lower spinning ball flight for the player looking for a more penetrating ball flight.
